MODEL: GME1134
Specifications：30KW UHF ATV Transmitter Professional used for TV transmitter station.
Standard: PAL-D/K/G/I
Frequency: UHF 470MHz~860MHz Specify frequency
Outputpower:≥30kw
Product introduction：The GME1134 UHF liquid cooled TV transmitter is a new generation high-power liquid cooled all solid state TV transmitter . A new product developed using LDMOS all solid state technology, which considers both standardization and serialization in appearance and structure, as well as aesthetic effects and practicality. The transmitter has stable and reliable performance, advanced technology, simple operation, and easy maintenance.
Click the button below to download the complete technical documentation of this product.
Overview

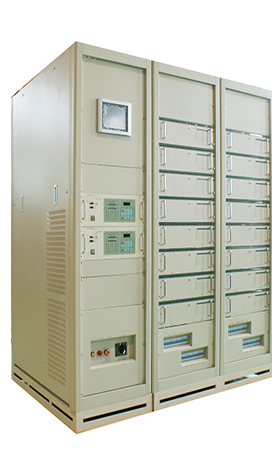

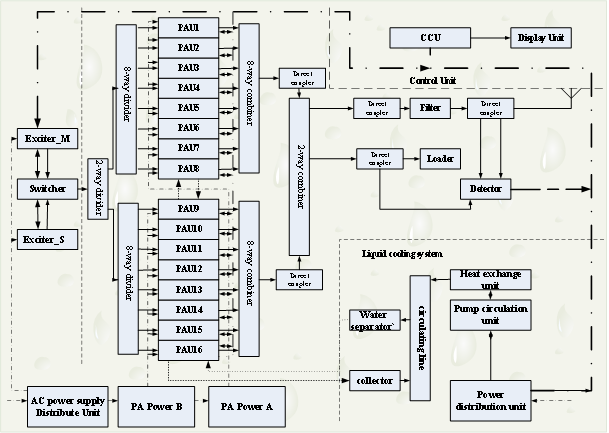

The GME1134 transmitter has a total of 3 cabinets, including 1 control cabinet and 2 power amplifier cabinets. In the front cabinet, there are exciters, distribution units, main control units, detection board units, dual exciter switching units, and touch screen display units.
Features
The GME1134 UHF30KW transmitter can be divided into four parts structurally: front-end cabinet, PA cabinet 1 #, PA cabinet 2 #, pump unit, and heat exchanger.
The overall structure is reasonable and the layout is beautiful. The exciter and control system are placed separately from the power amplifier to meet the design requirements of electromagnetic compatibility;
Adopting a modular design, three cabinets are combined together, making transportation and installation very convenient;
The whole machine adopts liquid cooling method for heat dissipation, ensuring the safe and reliable operation of the power amplifier module and reducing noise;
The whole machine is made of corrosion-resistant materials to adapt to different usage environments;
The water connector of the power amplifier unit adopts imported quick connectors, and the coolant is imported raw liquid, which has high reliability;
The whole machine has a small floor area, compact structure, and is easy to install and place.
Operating Channel | directional channel(470～860MHz) in frequency band UHF |
Modulation Indepth | ≤87.5% |
Output Power | sync peak power 30KW |
Aural/Visual Power Ratio | 10:1 |
Aural/Visual carrier frequency difference | 6.5 MHz |
In-Band Inter-modulation | ≤-51dB |
Non-required emission outside adjacent channel | ≤1mW，≤-63dB |
RF Output interfack | EIA 4-1/2” without flange |
RF Output Impedance | 50Ω |
Carrier frequency deviation | ±500Hz |
Cooling system | Liquid cooling |
PS voltage | 380V±10%/50Hz, 3-phase 4-line |
Power cosumption | ≤70KVA(black+audio) |
dimensions | 1792(width)*1960(height)*1300(depth)mm |
Environment temperature | 5~40℃ |
Altitude | ≤2000m |
Relative humidity | ≤95% |
Romote interface | RS485 |
Video Input | 1Vpp±3dB,75Ω |
Reflection Loss of Video Input | ≥30dB |
Amplitude/Frequency response | Refer to technical manual |
Modulation Mode | Amplitude modulation, negative polarity |
Group Delay – Frequency Response | ≤±50ns (0～5.5MHz) |
Field Square Wave | ≤2% |
Line Square Wave | ≤2% |
2T pulse | ≤2% |
Luminance Non-linearity Distortion | ≤8% |
Differential gain (DG) | ≤±5% |
Differential phase (DP) | ≤±4° |
Chrominance/Luminance Gain Difference | ≤10% |
Chrominance/Luminance Delay Difference | ±30ns |
Signal to Random Noise Ratio S/N (RMS, Un-weighted) | ≥50dB |
Signal to Periodic Noise Ratio S/N (Peak-Peak) | ≥50dB |
Incidental Carrier Phase Modulation(ICPM) | ±5° |
Audio Input | 0dBm±6dBm,600Ω balance |
Modulation mode | FM |
Carrier Frequency Deviation | ±500Hz |
Pre-emphasis Time Constant | 50μs |
Maximum Frequency Deviation | ±50KHz |
Audio Harmonics Distortion | ≤1%（30Hz~15KHz） |
Audio Amplitude-Frequency response | ±1dB(30Hz～15Hz) |
FM S/N Ratio | ≥60dB |
AM Noise(No modulation) | ≤-50dB |
Inter-carrier Noise (100%modulation ) | ≤-45dB |
